Aircraft

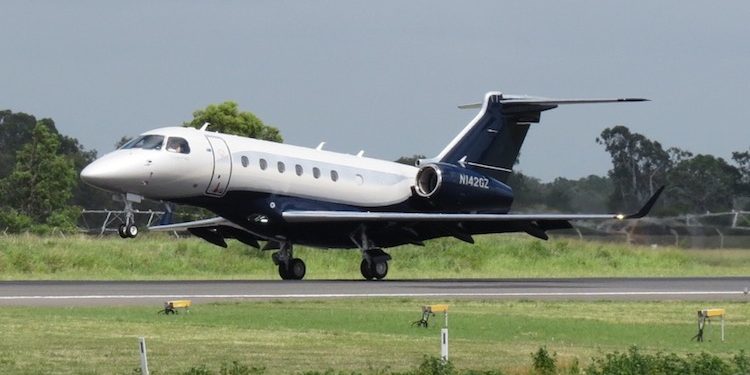

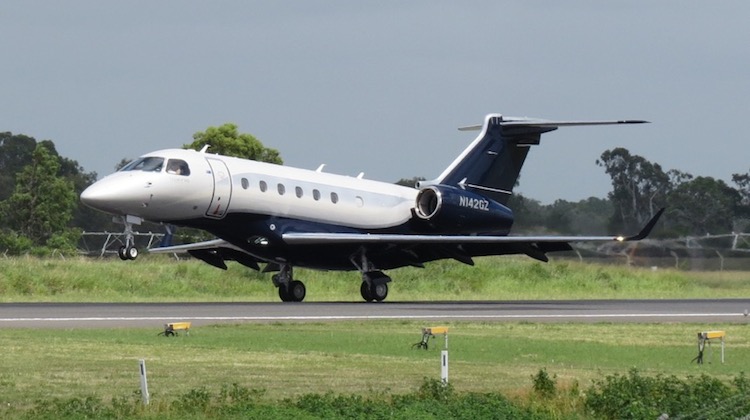

- The Embraer Legacy 500 is a super mid-size business jet known for its spacious cabin, fly-by-wire technology, and impressive range. It can carry up to 12 passengers and has a range of 3,125 nautical miles, allowing for flights like New York to London. The Legacy 500 features a Rockwell Collins Pro Line Fusion integrated avionics suite in the cockpit and is powered by two Honeywell HTF7500E engines.

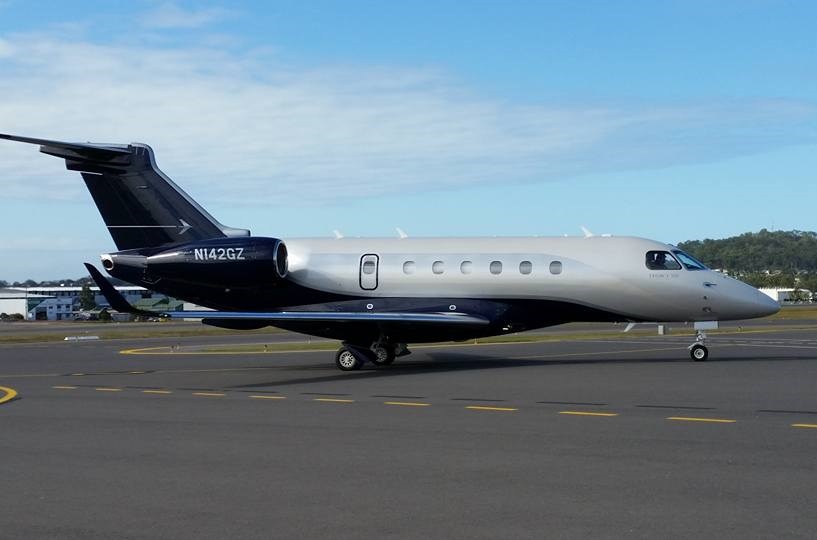

- N142GZ has 995 Hours Airframe Time
Engines
- APU SERIAL/PART: P-110/70720189-1 MODEL: GTCP36-150(EMB) MANUFACTURER: HONEYWELL INSTALLED ON: 21-AUG-2014 LAST ACTUALS: 976.5 APU HRS as of 29-NOV-2025
- ENGINE NO. 1 SERIAL/PART: P131119/70040119-1 MODEL: AS907-3-1E-A2 MANUFACTURER: HONEYWELL INSTALLED ON: 10-SEP-2014 LAST ACTUALS: 994.6 ENG. HRS as of 15-DEC-2025 764 ENC as of 15-DEC-2025
- ENGINE NO. 2 SERIAL/PART: P131118/70040119-1 MODEL: AS907-3-1E-A2 MANUFACTURER: HONEYWELL INSTALLED ON: 10-SEP-2014 LAST ACTUALS: 994.6 ENG. HRS as of 15-DEC-2025 764 ENC as of 15-DEC-2025
Avionics
-

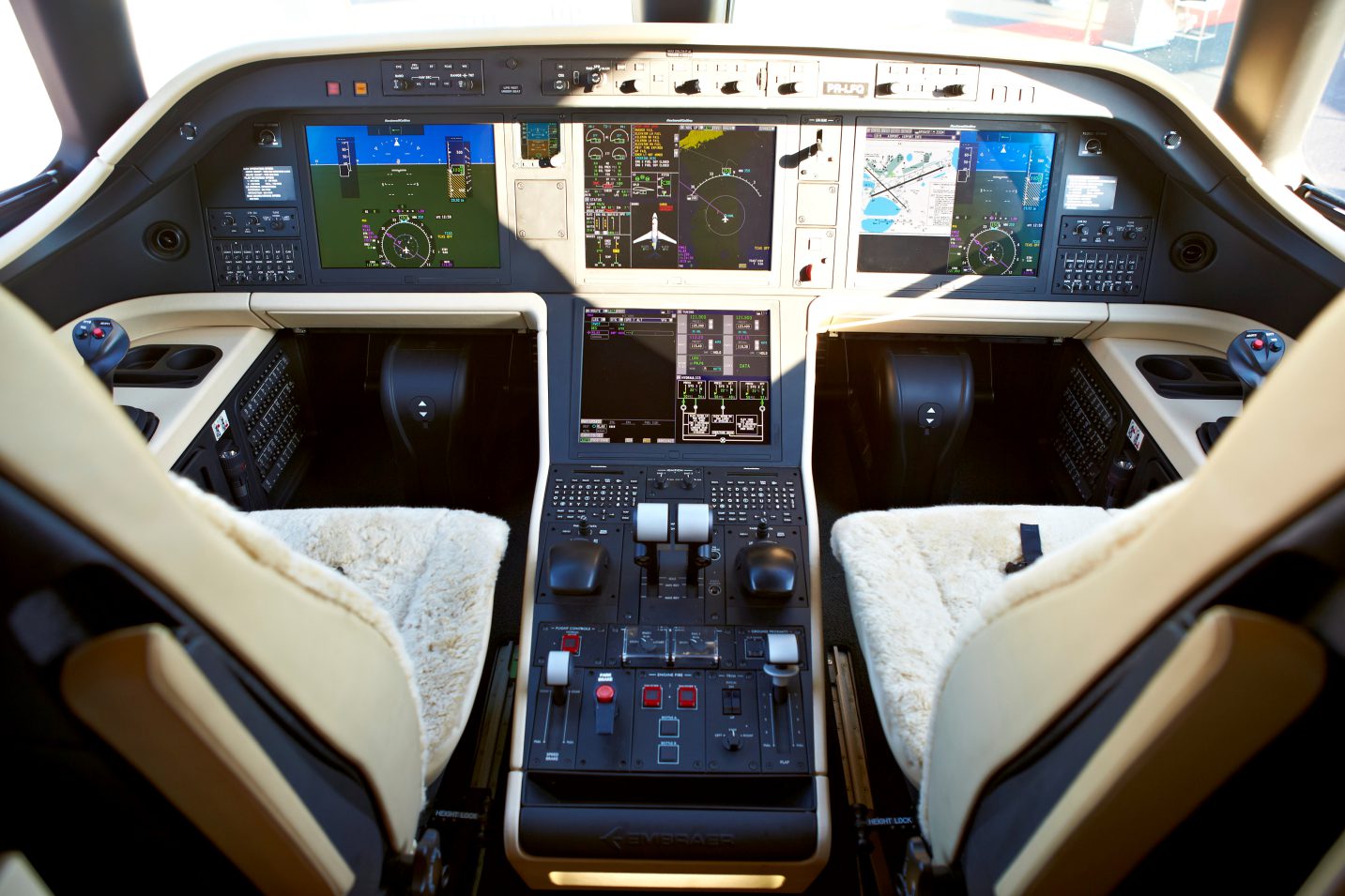

ADF: Collins NAV-4000 AHRS: Dual Collins AHC-4000 Autopilot: Collins FCP-5070 Avionics Package: Collins Pro Line Fusion Communication Radios: Triple Collins VHF-4000 CVR: L3 FA5000 DME: Collins DME-4000 EFIS: Collins AFD-6520 4-tube FDR: L3 FA5000 Flight Rules: IFR FMS: Dual Collins CCM-5110 GPS: Dual Collins GPS-4000S Hi Frequency: Dual Collins HF-9031A Navigation Radios: Collins NAV-4000; Collins NAV-4500 Radar Altimeter: Collins ALT-4000 SATCOM: ICG ICS-220A Iridium w/dual handsets TAWS: Collins CCM-6210; Collins TPM-6000 EGPWS TCAS: Collins TSS-4100 TCAS-II w/change 7.1 Transponder: Dual Collins TDR-94D Weather Radar: Collins RTA-4118 (multi-scan)
Landing Gear
Landing Gear OH IAW 10 year Inspection May 2025
Interior
-
- Pilot Seats with Sheep Skin Cover
- Pilot Tables
- Life raft FAA/ ANAC + life line
- 115 fl capacity oxygen cylinder
- 110 Minutes Cargo Fire Suppression System
- Crash Axe
- Towing kit

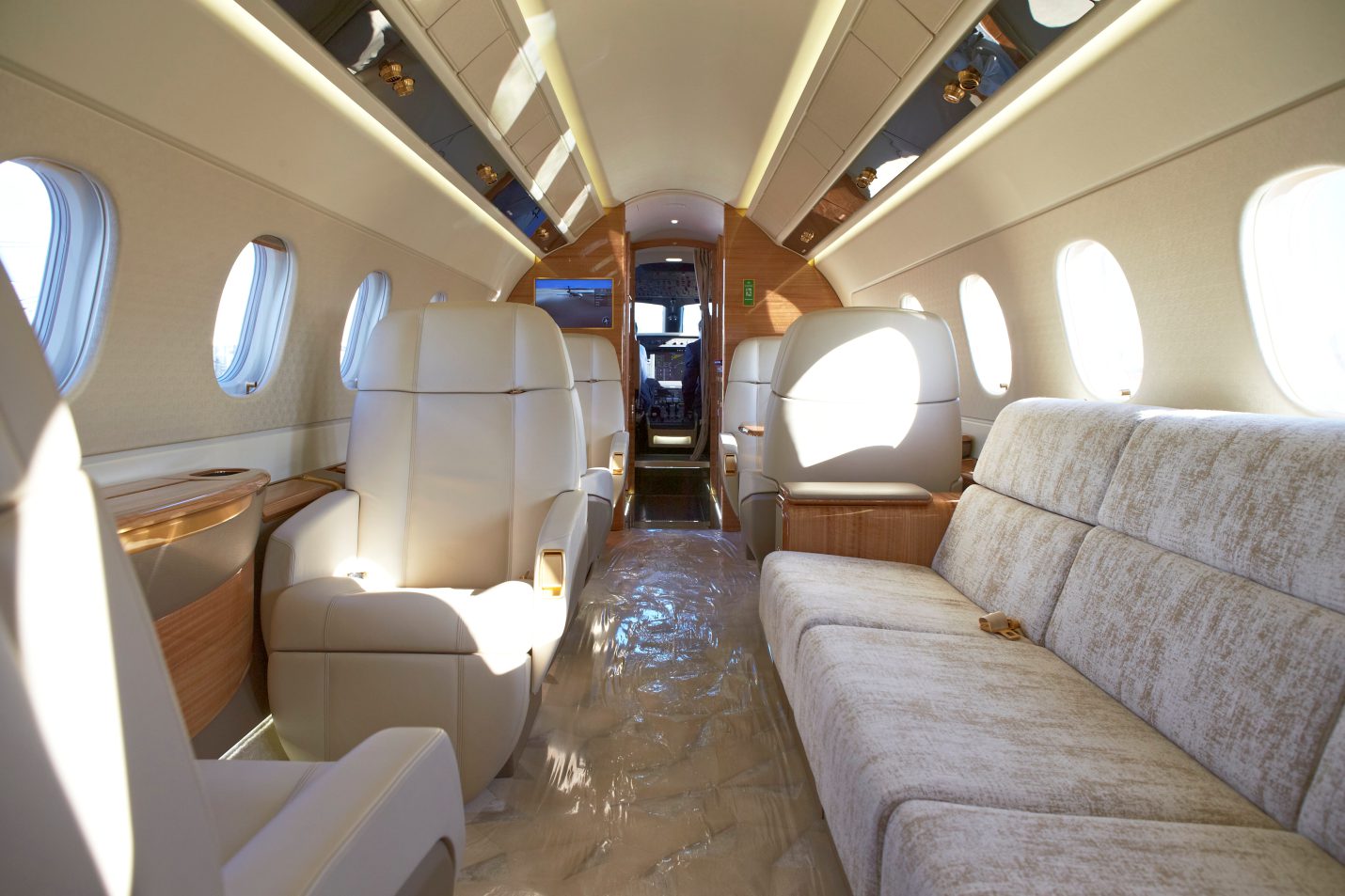

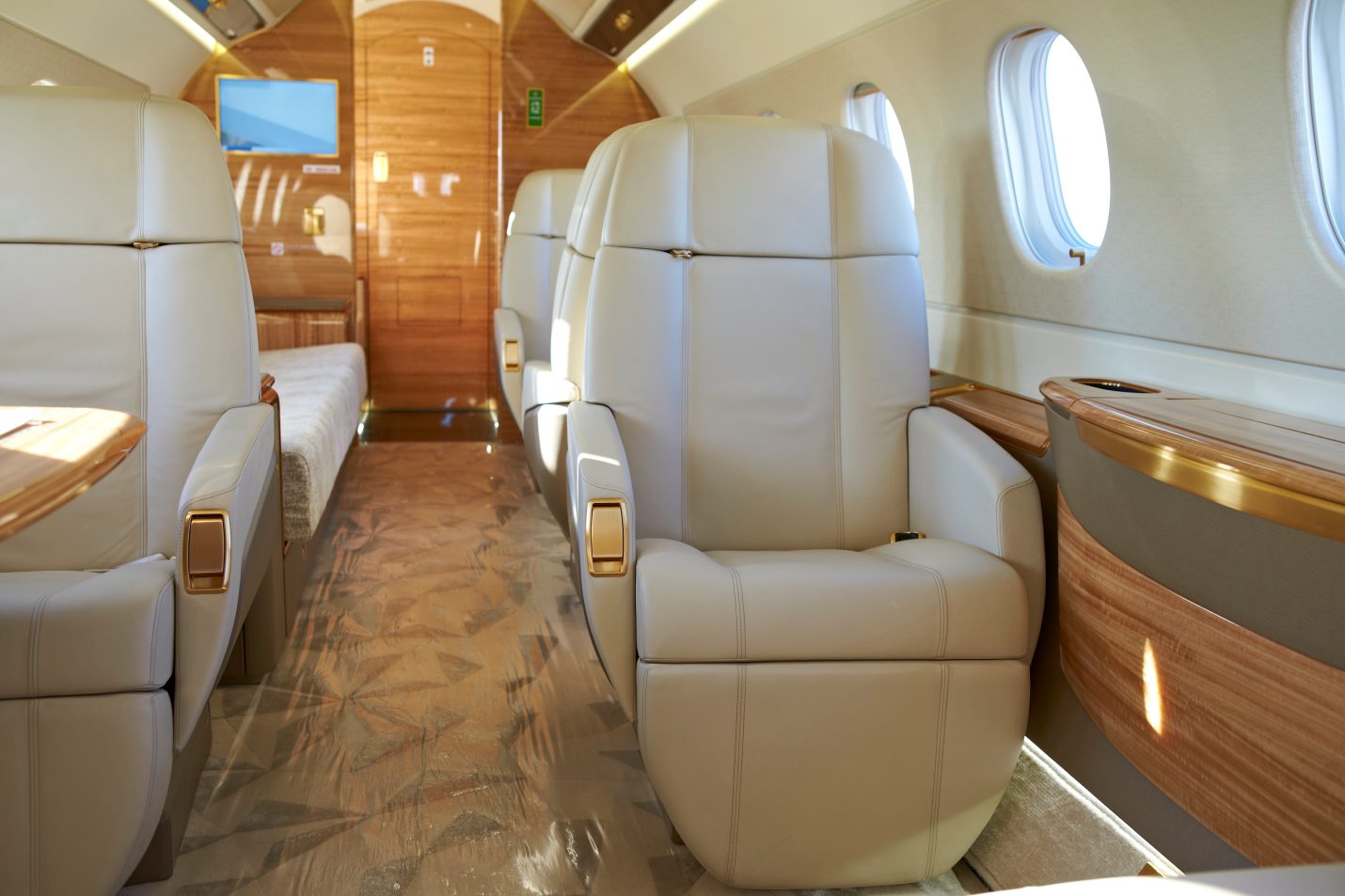

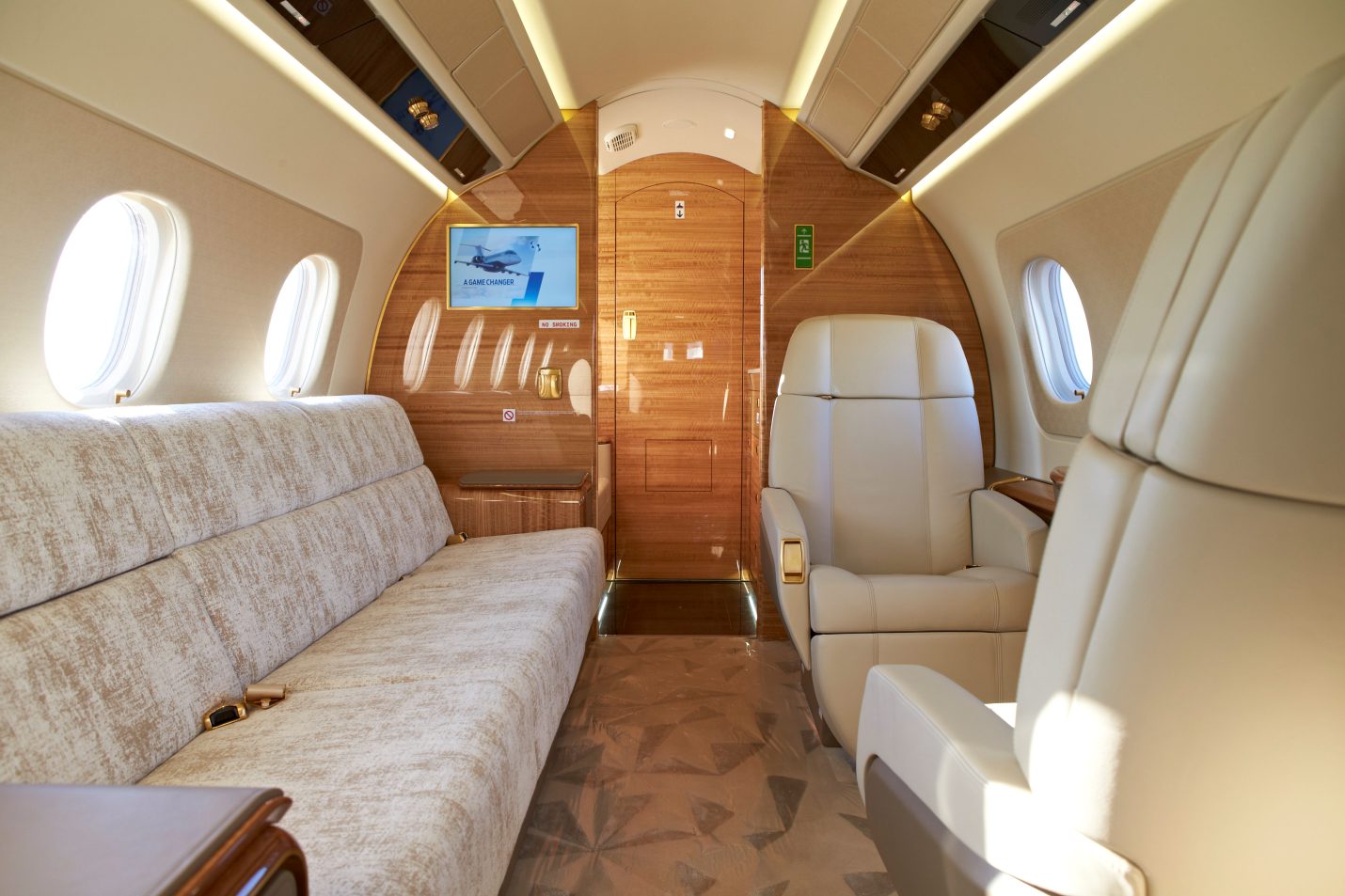

- Cabin Arrangement 9 Passengers Configuration with a 3 place divan in the aft cabin RHS
- Observer Stowable Cockpit Jump Seat
- ENHANCED Seat – per seat/ Quantity 05
- PREMIUM Seat – per seat/ Quantity 01
- Cockpit/Galley Curtain
- Galley/Cabin Pocket Door
- Main Door Thermo-Acoustic Curtain
- Drawers – position 5
- First standard unit – position 7
- Drawer – position 8
- Convection Oven – position 3
- Microwave Oven – position 4
- Nespresso Machine – position 9
- Automatic Water In-Flight Drainage
- China
- Belted Toilet
- Lavatory Smoke Detector and Fire Protection System
- Internal Luggage Compartment Shelves
- Baggage Compartment ladder
- Heating system for Baggage Compartment
- Iridium Satellite Phone
- lnmarsat High Speed Data
- Premiun Cabin Management System
- 19″ HD Forward Monitor (exchange)
- 19″ HD Aft Monitor (exchange)
- Individual Monitors Receptacle – 2 monitors induded
- Additional Power Outlets
- High Power Outlets 11SV
- HEPA Filter
- Therapeutic Oxygen
- Special veeners
- Stone floor on galley and lavatory floors
- Special plating options
Extras
Optional equipment included in the Aircraft:
ADSB Out
- RNPAR 3
- ELT/NAV
- SingleADF
- Multiscan Weather Radar
- Third VHF
- Dual HF plus SELCAL
- ACARS Datalink
- CPDLC
- Datalink Graphical Weather
- Surface Management System (*)
- Paperless Operation Capability
- Pilot Seats with Sheep Skin Cover
- Pilot Tables
- Autobrake (*)
- Life raft FAA/ ANAC + life line
- 115 fl capacity oxygen cylinder
- 110 Minutes Cargo Fire Suppression System
- Crash Axe
- Towing kit
- Cabin Arrangement B: 09 Passengers Configuration with a 3 place divan in the aft cabin RHS
- ENHANCED Seat – per seat/ Quantity 05
- PREMIUM Seat – per seat/ Quantity 01
- Cockpit/Galley Curtain
- Galley/Cabin Pocket Door
- Main Door Thermo-Acoustic Curtain
- Drawers – position 5
- First standard unit – position 7
- Drawer – position 8
- Convection Oven – position 3
- Microwave Oven – position 4
- Nespresso Machine – position 9
- Automatic Water In-Flight Drainage
- China
- Belted Toilet(*)
- Lavatory Smoke Detector and Fire Protection System (*)
- Internal Luggage Compartment Shelves
- Baggage Compartment ladder
- Heating system for Baggage Compartment
- Iridium Satellite Phone
- lnmarsat High Speed Data
- Premiun Cabin Management System
- 19″ HD Forward Monitor (exchange)
- 19″ HD Aft Monitor (exchange)
- Individual Monitors Receptacle – 2 monitors induded
- Additional Power Outlets
- High Power Outlets 11SV
- HEPA Filter
- Therapeutic Oxygen
- Special veeners
- Stone floor on galley and lavatory floors
- Special plating options
